Mark Zoback, Stanford University
Mike Rymer, U.S. Geological Survey

The San Andreas Fault: “The Lecture” -- (to be followed by “The Field Trip” in May)

This will not only be an interesting pair of presentations, it is also the precursor to the May 13-15 Carrizo Plain-San Andreas Fault field trip (for which you should have already made reservations because it's full).

  • DINNER MEETING - Tuesday, April 12, 2005
  • Location: Stanford University

  • 5:30 PM-Wine Tasting: . . . Mitchell Bldg., first floor
  • 6:15 PM-Dinner: . . . Mitchell Bldg., first floor
  • 7:30 PM-Meeting: . . . Bloch Lecture Hall (Hewlett 201)

    see Map showing Mitchell
    Map showing Bloch

    Anyone wishing to attend the lecture only is welcome at no cost.

    This will be the 371st meeting since 1954

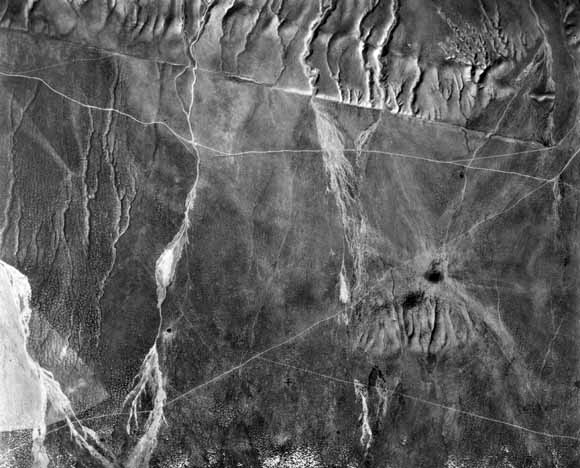

    satellite image showing fault cutting alluvial fans

    Satellite image of Carrizo Plain


    (From a talk by Mark Zoback, Stephen Hickman and William Ellsworth: “Testing Fundamental Theories of Earthquakes and Faulting: The San Andreas Fault Observatory at Depth”)

    On September 16, 2004, the San Andreas Fault Observatory at Depth (SAFOD) reached the planned total depth for Phase 1. After drilling vertically to a depth of ~ 1.5km at a site 1.8 km from the San Andreas Fault, the SAFOD drillhole is now deviated 54 degrees from vertical and has drilled 1.1 km toward the San Andreas fault, aiming directly at a patch of fault producing repeating M~2 microearthquakes at 3 km depth. The current vertical depth of the hole is 2.5 km. During drilling, gas emanations (He, CO2, CH4, H2, Rn, etc.) were continuously monitored, cuttings from the well were sampled at 3 m intervals, cores have been obtained from two depths and comprehensive geophysical measurements have been carried out in the hole.

    The successful 2.2-km-deep, vertical SAFOD pilot hole was drilled into fractured granite at the same drillsite. Geophysical models suggested we would continue to drill through fractured granite until we encountered the highly deformed fault rocks of the San Andreas Fault Zone. However, when the main hole was only 213 m northeast of the pilot hole, sedimentary rock was encountered after drilling through a fault and the remainder of the hole was drilled in sandstone, with intervals of claystone and shale. A comprehensive suite of geophysical logs has been obtained to characterize the physical properties of the rocks already penetrated, the degree of faulting in these rocks and the in situ stress state. Various sets of geophysical data are being obtained in the SAFOD borehole to help reduce uncertainties in the exact location of the target microearthquakes: P- and S- velocity logs have been obtained, monitoring of microearthquakes near the target zone is happening utilizing a seismometer at the bottom of the main hole until Phase 2 drilling begins in early summer of 2005 and an 80-level seismic array will be deployed in April to record surface shots to better constrain existing seismic velocity models.

    One of the highlights of the downhole measurements program was a mini-frac test at ~1.5km. The magnitude of the least principal stress obtained in this test confirms the strike slip/reverse stress state derived in the pilot hole (where no minifracs could be done) and helps establish the stress stress field outside the active fault zone. A fluid sampling test will be carried out during the hiatus in drilling between Phases 1 and 2 to obtain uncontaminated fluid samples and another minifrac stress measurement will be obtained at that time, at greater depth and much closer to the San Andreas Fault.

    Numerous monitoring activities are underway related to construction of the SAFOD observatory. An integrated seismic, strain and pore pressure instrumentation sonde is being developed for deployment in the pilot hole next spring. A fiber optics laser strainmeter has been deployed behind casing in the main SAFOD hole at the end of September. The 80-level, high temperature seismic array mentioned above is being evaluated as a possible instrumentation backbone used for permanent deployment of seismic (and other) sensors in the main hole when coring operations come to an end in 2007.
